F1P-SM72

F1P-SM72

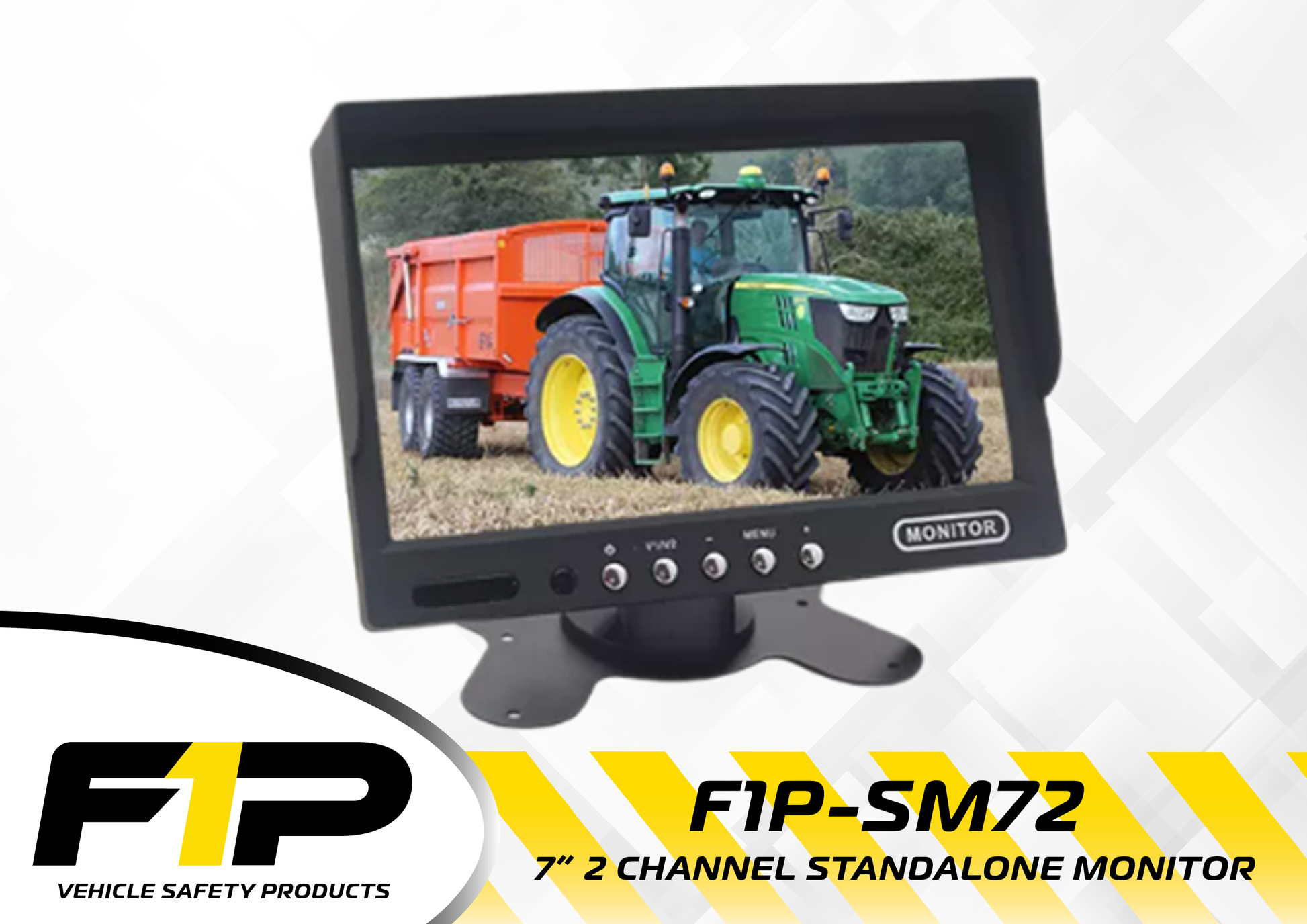

7-inch 2 Channel Standalone Monitor

Documents

Compatibility

Specs

Universal Fit
  • Screen Size: 7-inch LCD (Digital Panel TFT)
  • Resolution: 800 x 480 Pixels
  • Display Aspect: 4:3 & 16:9
  • Color: RGB
  • Video System: NTSC/PAL
  • Brightness: 500LUX
  • Video Input: 2 Sources Input (Aux input 1, Back-Up Camera Input 2)
  • Current Consumption: MAX: 300mA (DC12V)
  • Power Consumption: MAX: 4W
  • Voltage Input: DC 9 – 16V
  • Operation Temperature: -10°C to +65°C (14°F to 149°F)
  • Storage Temperature: -30°C to +80°C (-22°F to 176°F)
  • 7-inch LCD Display
  • Built-in Sun Visor
  • 2 Triggered Video-Inputs
  • Compatible with 4 pin Aviation or RCA connectors
  • Provides Power for Cameras
  • Image Adjustable for Mirror and Normal Viewing
  • Fan Style Surface Mount included
  • Remote Control Included
  • 1 Year Warranty
