77GHz Blind Spot Radar Detection System with Lane Change Assist, Rear Cross Traffic Alert and Active Overtaking Alert.

Documents

Compatibility

Specs

Universal
NOTE: Not compatible with metal bumpers

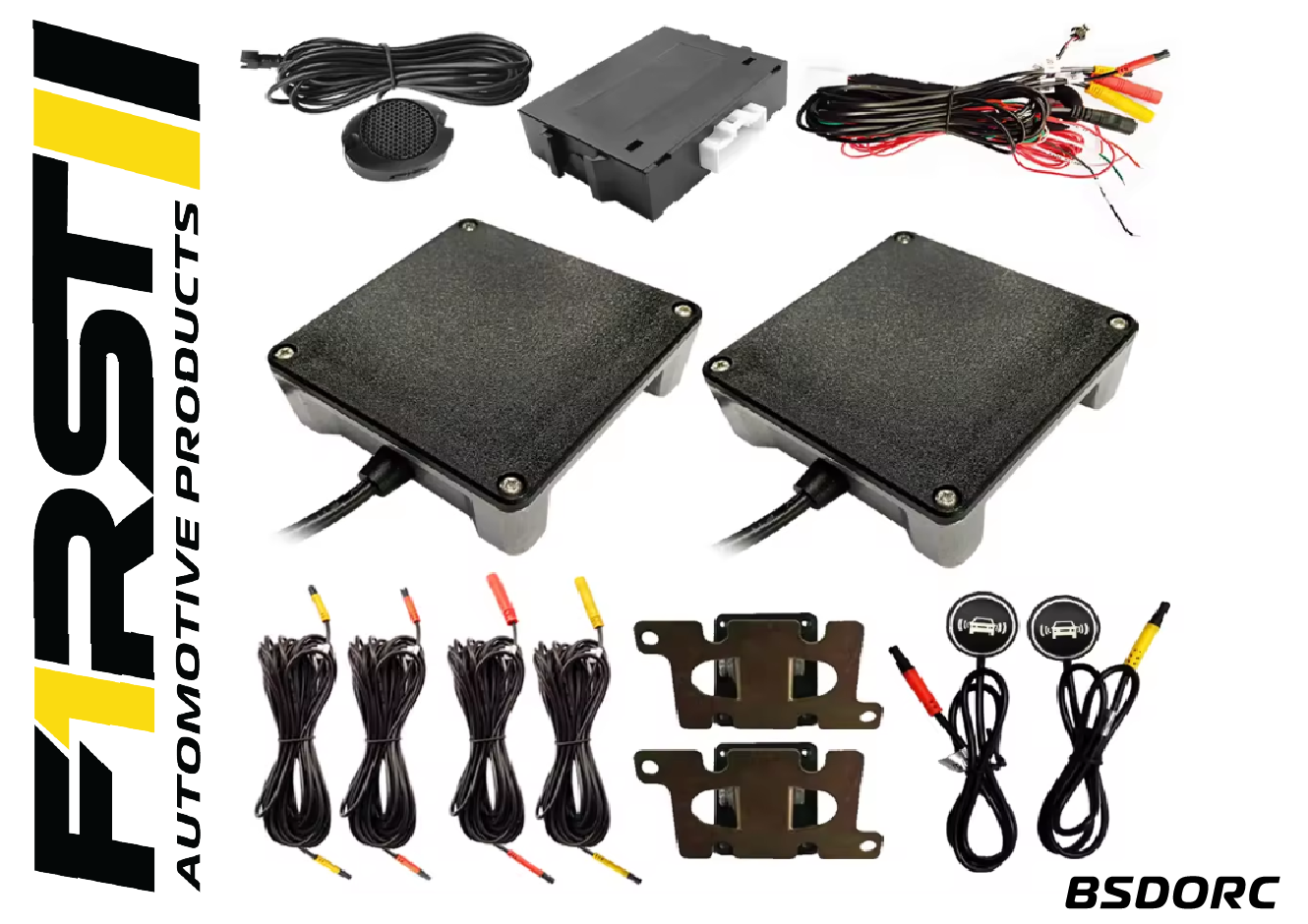

Kit Includes:
  • 1 Set of surface mount LEDs
  • 1 Set of flush mount LEDs
  • 1 Control box
  • 1 Main harness
  • 1 GPS antenna
  • 1 External speaker
  • 2 77G HZ Microwave Sensors
  • 2 Sensor mounts
  • 2 LED extension cables
  • 2 Sensor extension cables

The BSDORC uses the latest 77GHz Millimeter-Wave Radar Technology.  The 2T4R (2 Transmit / 4 Receiving) antenna uses supercomputing technology, allowing our unit to detect more than 100 objects while moving simultaneously.  Our unit uses GPS that activates when speed reaches 5mph/10mph/15mph/20mph reducing false indications.



FEATURES

1. Door Opening Warning (DOW)
2. Overtaking Warning (AOA)
3. Same speed warning (alarm when the target vehicle is at the same speed)
4. Lane Change Assistant Warning (LCA)
5. Blind Spot Detection Warning (BSD)
6. Rear Cross Traffic Alert (RCTA)
7. GPS Speed Activation @ 5mph, 10mph, 15mph & 20mph
8. (2) 77Ghz External rear-mounted sensors
9. Surface mount LEDs & Flush mount LEDs
10. External Buzzer
11. 3 year warranty

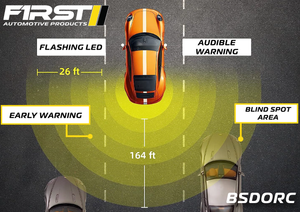

BSD and LCA function: When driving every day, if another vehicle closes to the left(right) side of the vehicle, the left(right) LED light will light. No
buzzer alarm. When turning on the Left blinker, if another vehicle closes to
the left (right)side of the vehicle, the left LED will flash and the buzzer will
alarm.

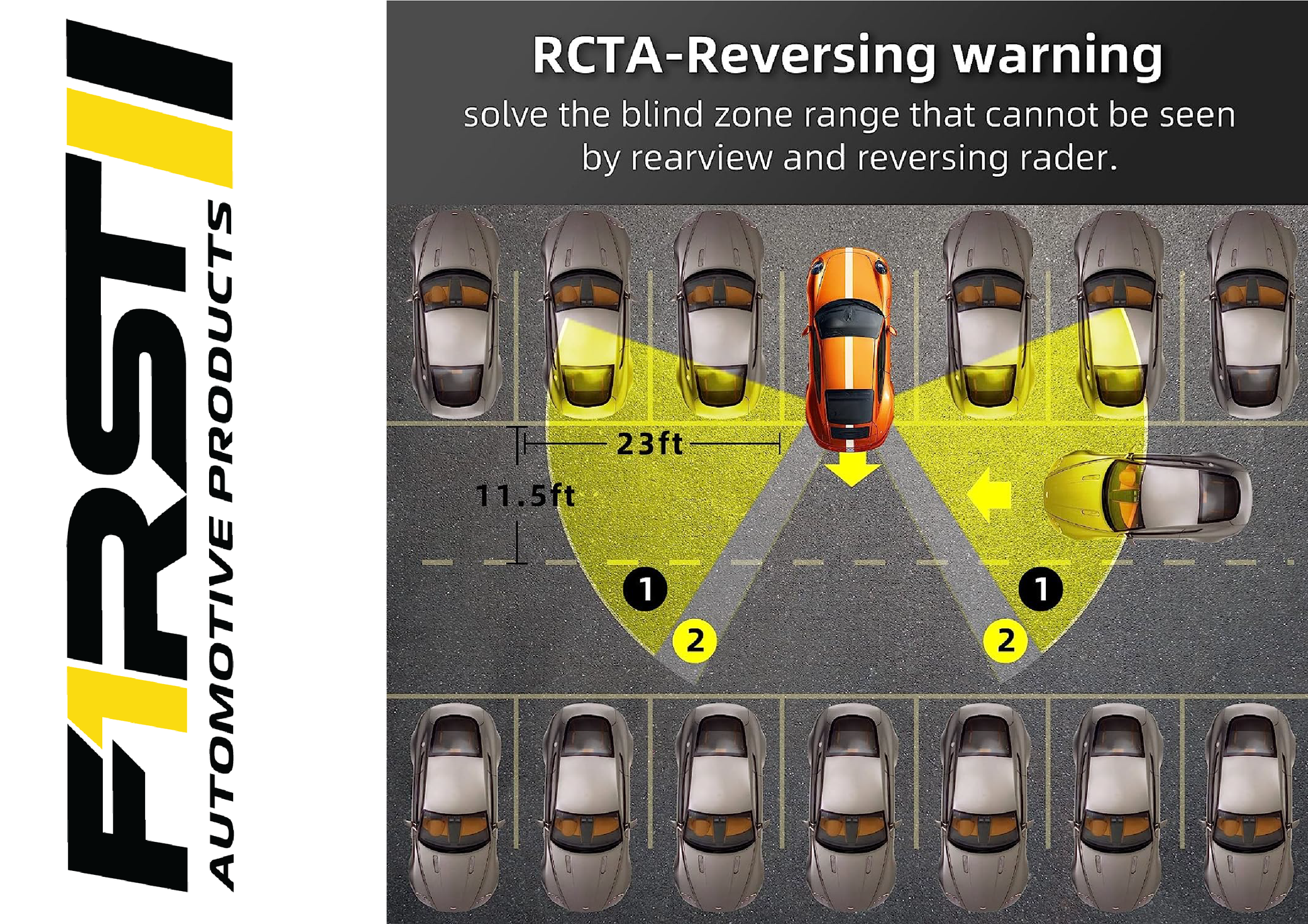

RCTA function: When reversing, the relative speed between the vehicle
and the object behind the vehicle exceeds 6km/H; the LED will flash, and the buzzer will alarm.

AOA function: When the vehicle speed is higher than the target car is in the overtaking when the target car enters the alarm range, a first-level warning is generated, and the LED on the corresponding side is always bright until the target leaves the alarm area and cancels the warning.

Blind Spot Keeping function: The car is in front of the target car, but the target car has been in the blind area of the car, with two cars going the same speed forward, the system starts the blind zone maintenance function and produces a level warning, the corresponding side of the LED is always bright, until the target leaves the alarm area, cancel the warning.
